ASTM A 392 Chain Link Fence
Basic Info
Model No.: DM-CHAIN LINK FENCE-18
Product Description
Chain link Fence
Chain link Fence is also known as chain link mesh, diamond fence. Chain link fence is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc. Also can be used for breeding of animals.
Chain Link Fence size Height x Length: 2.1 x 12m Mesh Size: 50*50mm Wire Diameter: 3mm Materia: Hot dip galvanized wire Line Post: 48 x 2 x 2700mm Corner Post: 60 x 2 x 2700mm Horizontal Pipe: 48 x 2 x 6000mm Single Arm: 450mm length Barbed Wire: cross type, main wire 2.6mm, barb wire 2.2mm Drawing
Specification
Material Electric galvanized wire, Hot dip galvanized wire, PVC wire Opening 40*40mm 50*50mm 60*60mm 75*75mm 100*100mm Wire Diameter 2.0-4.8mm Height 1.2m, 1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 2.5m, 3m, 3.6m Roll length 10m, 15m, 18m, 20m, 25m, 30m, etc Post Round post, Angle iron post
Chain Link Fence Surafce
Advantage Chain link fence convenient installation, elegant appearance, variety application. Edge Type 1.Barbed-Barbed (Twist) the wire is twisted into a barbed selvage at both ends and is abbreviated as (BB) 2. knuckle-knukle (Knuckle) the wire is knuckled at both ends and abbreviated as(KK) 3. Knuckle-Barbed (Twist & Knuckle) the wire is knuckled at the bottom and twisted into a barbed selvage at the top (KB)

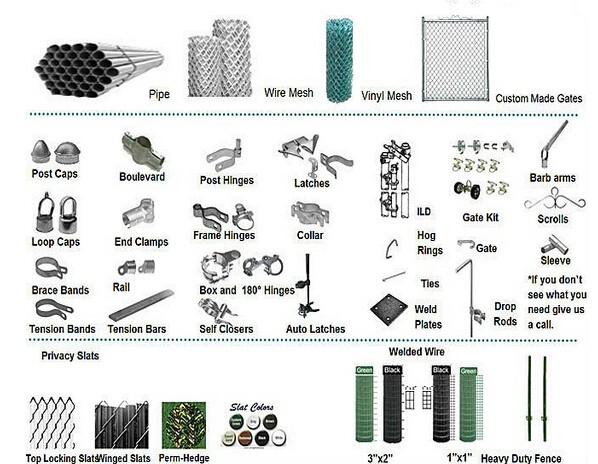

Chain link Fence accessories

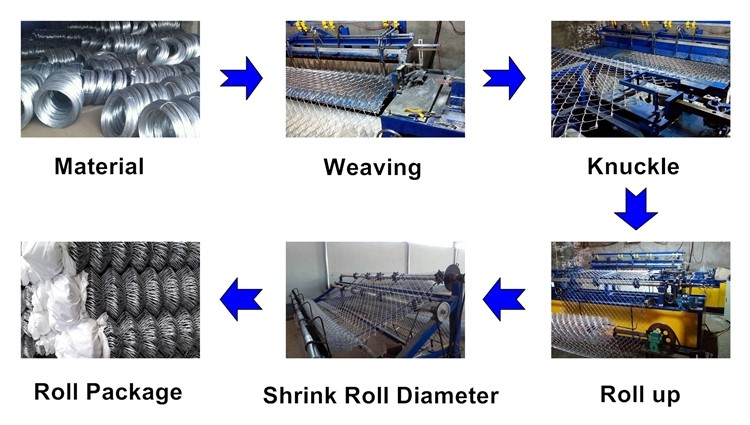

Production Process
Chain link fence weave by automatic machine
Galvanized wire/PVC wire material------weaving-----Knuckle-----Roll up-----Roll package

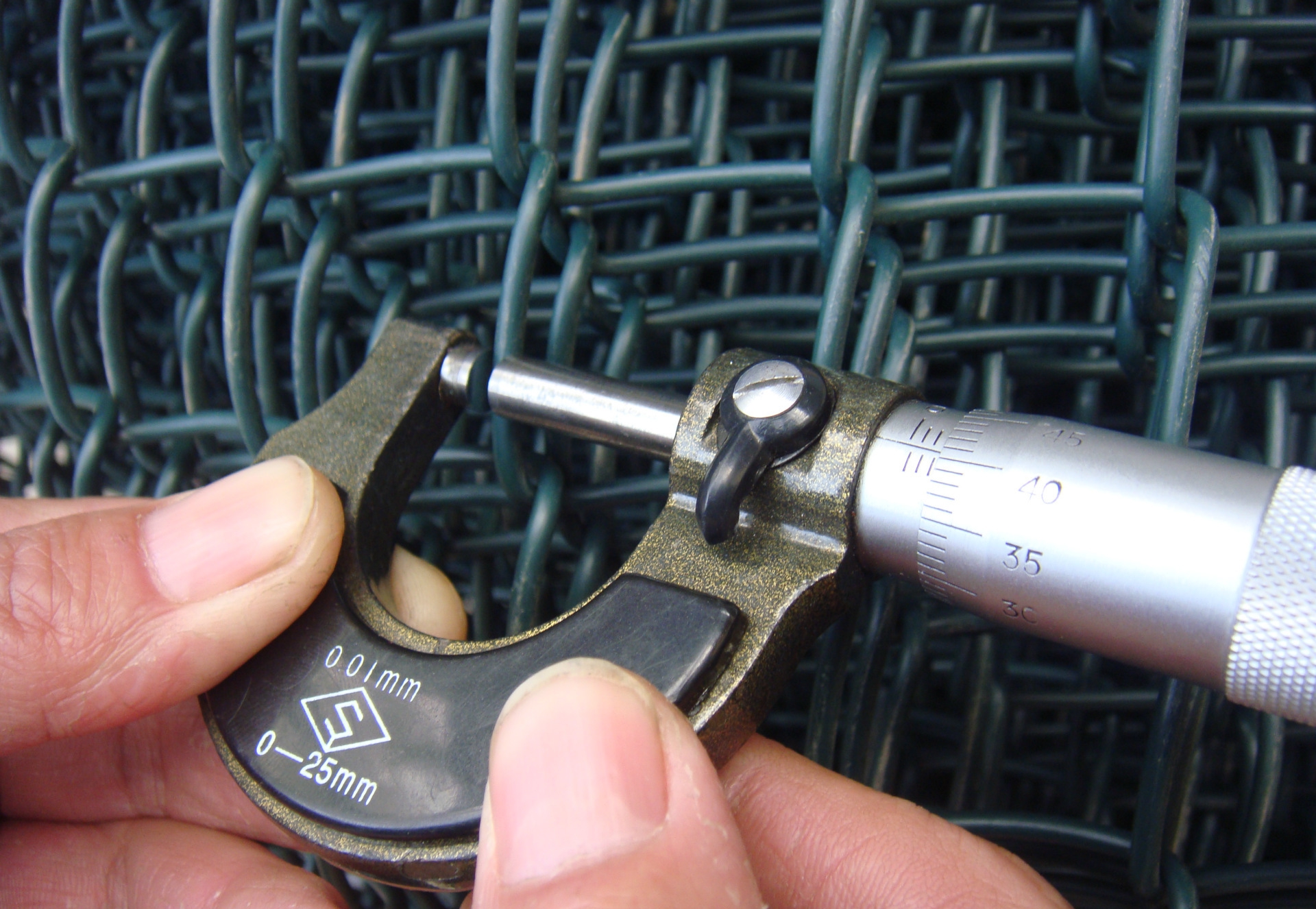

Quality Control
Package
Product Categories : Woven Fence > Chain link fence
